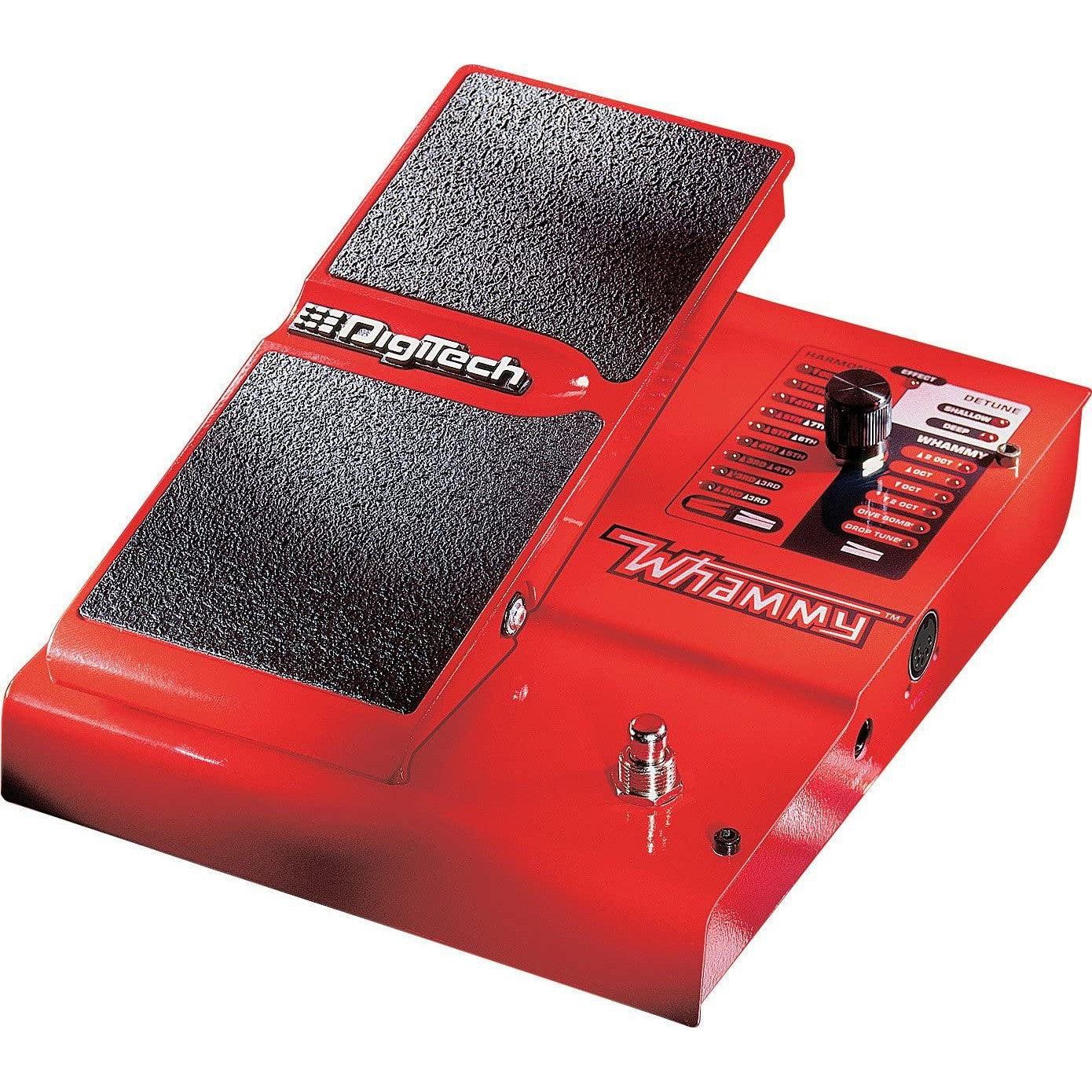

DigiTech Whammy Pedal Re-issue with MIDI Control

It’s been a decade since the Whammy was introduced and now it has a permanent place on every professional’s pedalboard. This is what has made the Whammy a legend. Hit after hit, performance after performance, the Whammy not only adds to your playing, it creates new sounds, feelings and textures.

6 Whammy modes including famous 2 Octave Up as heard on 100’s of songs!

10 Harmony Bend modes including 2nd Up to 3rd Up simulating pedal steel bends!

Expression pedal controls dive bombs and bends

Cutting–edge pitch detection engine designed specifically for guitar delivers fast accurate shifting!

MIDI In & Out/Thru to control pitch bends via cc’s


Modes

Whammy Modes

2 Oct Up - Bends your input note two octaves up. 1 Oct Up - Bends your input note one octave up. 1 Oct Dn - Bends your input note one octave down. 2 Oct Dn - Bends your input note two octaves down. Dive Bomb - Bends your input note three octaves down. Drop Tune - Bends your input note two semi-tones down with a reversed pedal action.

Harmony Bend Modes

2nd Up/3rd Up - Bends the harmony between a second (toe up) and a third (toe down) above the input note. Min 3rd Up/3rd Up - Bends the harmony between a minor third (toe up) and a Major third (toe down) above the input note. 3rd Up/4th Up - Bends the harmony between a third (toe up) and a fourth (toe down) above the input note. 4th Up/5th Up - Bends the harmony between a fourth (toe up) and a fifth (toe down) above the input note. 5th Up/6th Up - Bends the harmony between a fifth (toe up) and a sixth (toe down) above the input note. 4th Up/7th Up - Bends the harmony between a fourth (toe up) and a seventh (toe down) above the input note. 4th Dn/3rd Dn - Bends the harmony between a fourth (toe up) and a third (toe down) below the input note. 5th Dn/4th Dn - Bends the harmony between a fifth (toe up) and a fourth (toe down) below the input note. Oct Up/Oct Dn - Bends the harmony between one octave below (toe up) and one octave above (toe down) the input note.

Detune Modes

Shallow - The signal is shifted slightly out of tune from the original pitch and mixed with the original. Deep - The signal is shifted substantially out of tune from the input signal and mixed with the original.

Specifications

Dimensions: 8” (L) x 6.3” (W) x 2.5” (H) Weight: 3.5 lbs. (1.6 kg) Sample Rate: 46.875 kHz Frequency Response Dry: 20 Hz to 20kHz Frequency Response Wet: 20 Hz to 12kHz Signal to Noise Ratio: Greater than -95dB (A weighted); ref = max level, 22 kHz bandwidth THD: 0.006% (1kHz); ref = 1dBu w/ unity gain A/D Conversion: 24 bit D/A Conversion: 24 bit Max Input: +8.8 dBu Max Output: +8.8 dBu

• 6 Whammy modes including famous 2 Octave Up as heard on 100’s of songs!
• 10 Harmony Bend modes including 2nd Up to 3rd Up simulating pedal steel bends!
• Expression pedal controls dive bombs and bends
• Cutting–edge pitch detection engine designed specifically for guitar delivers fast accurate shifting!
• MIDI In and Out/Thru to control pitch bends via cc’s
