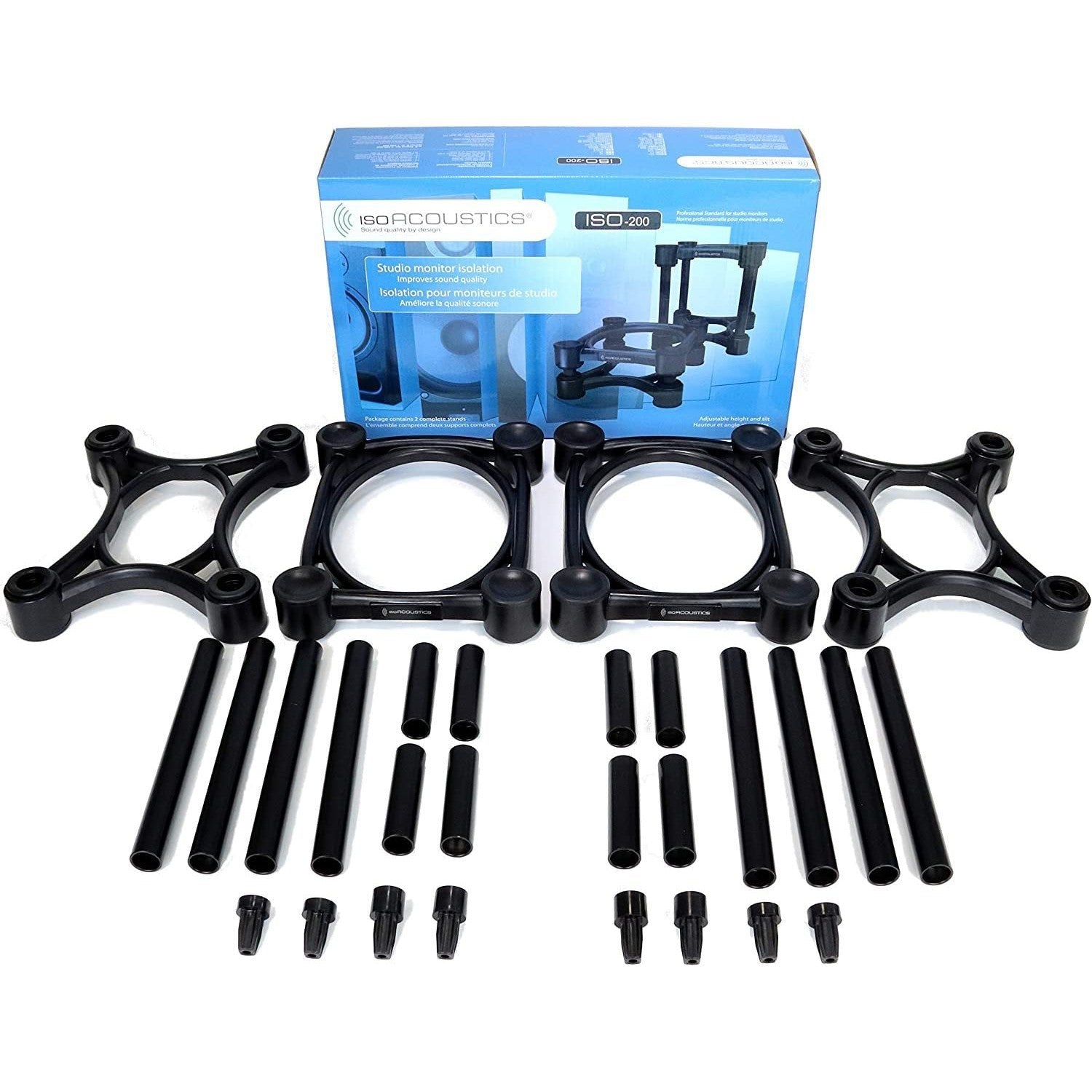

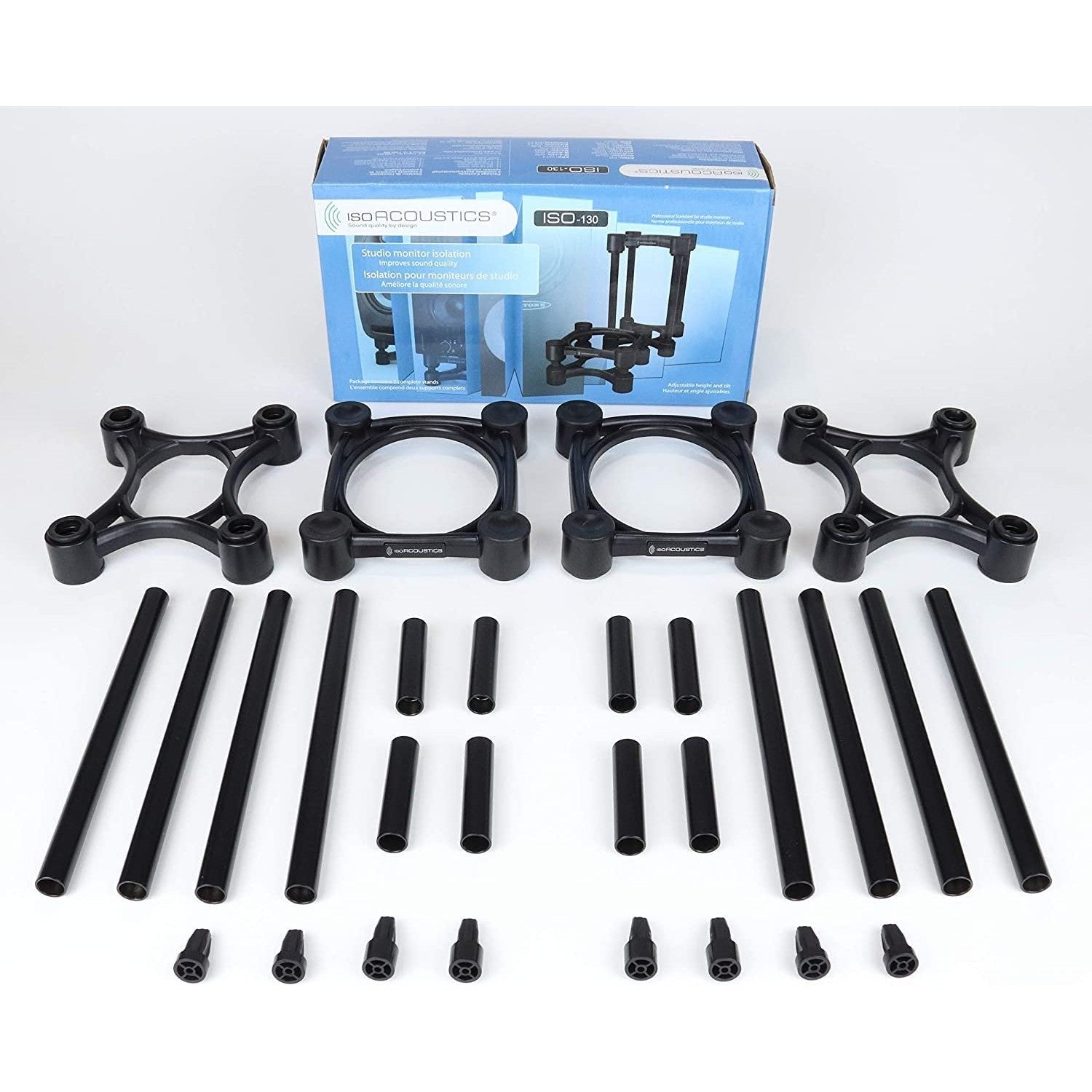

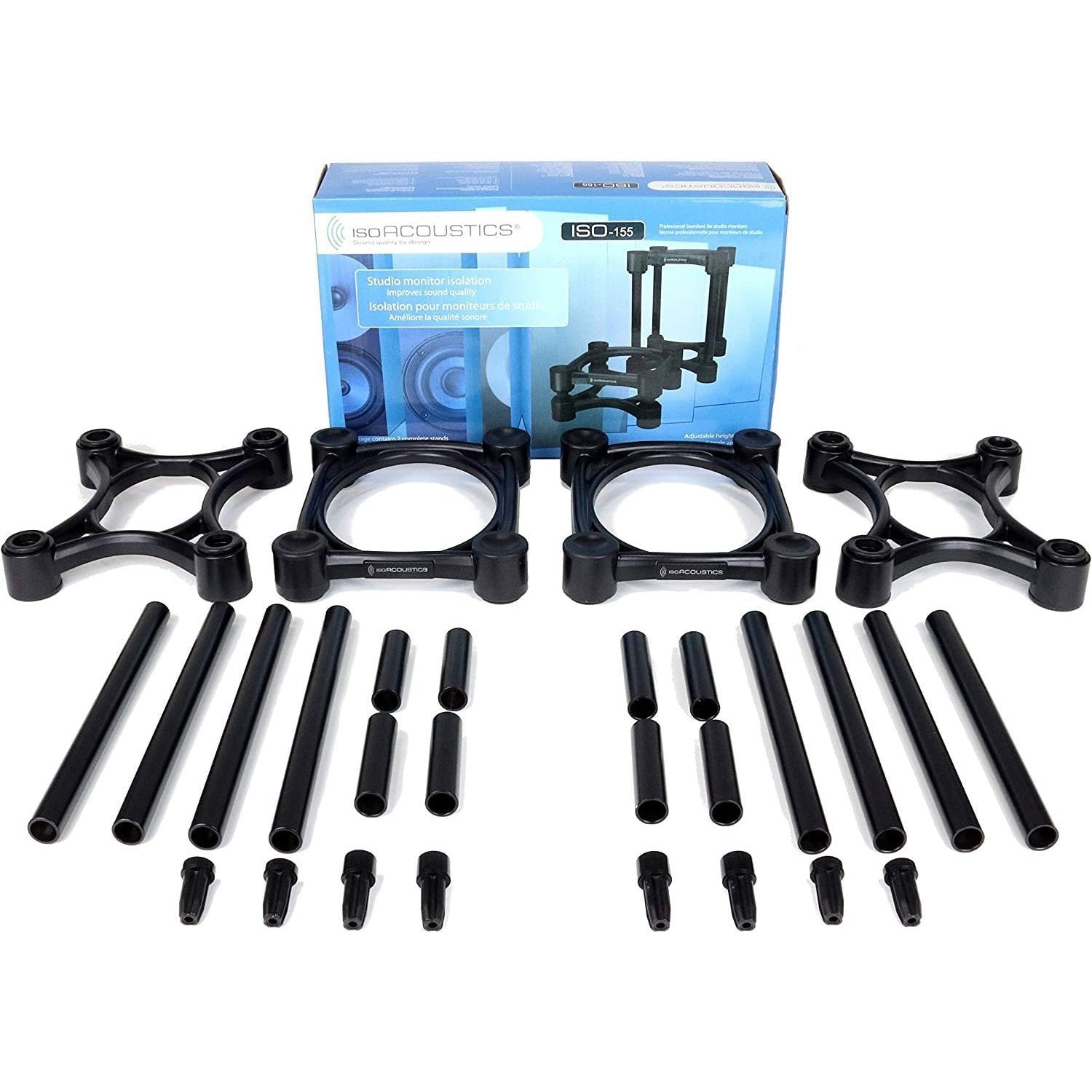

Step 1: Choose between the short tubes or the long tubes
First, choose between the short tubes or the long tubes to decide the optimal height for the speaker stands to deliver the best quality of audio.

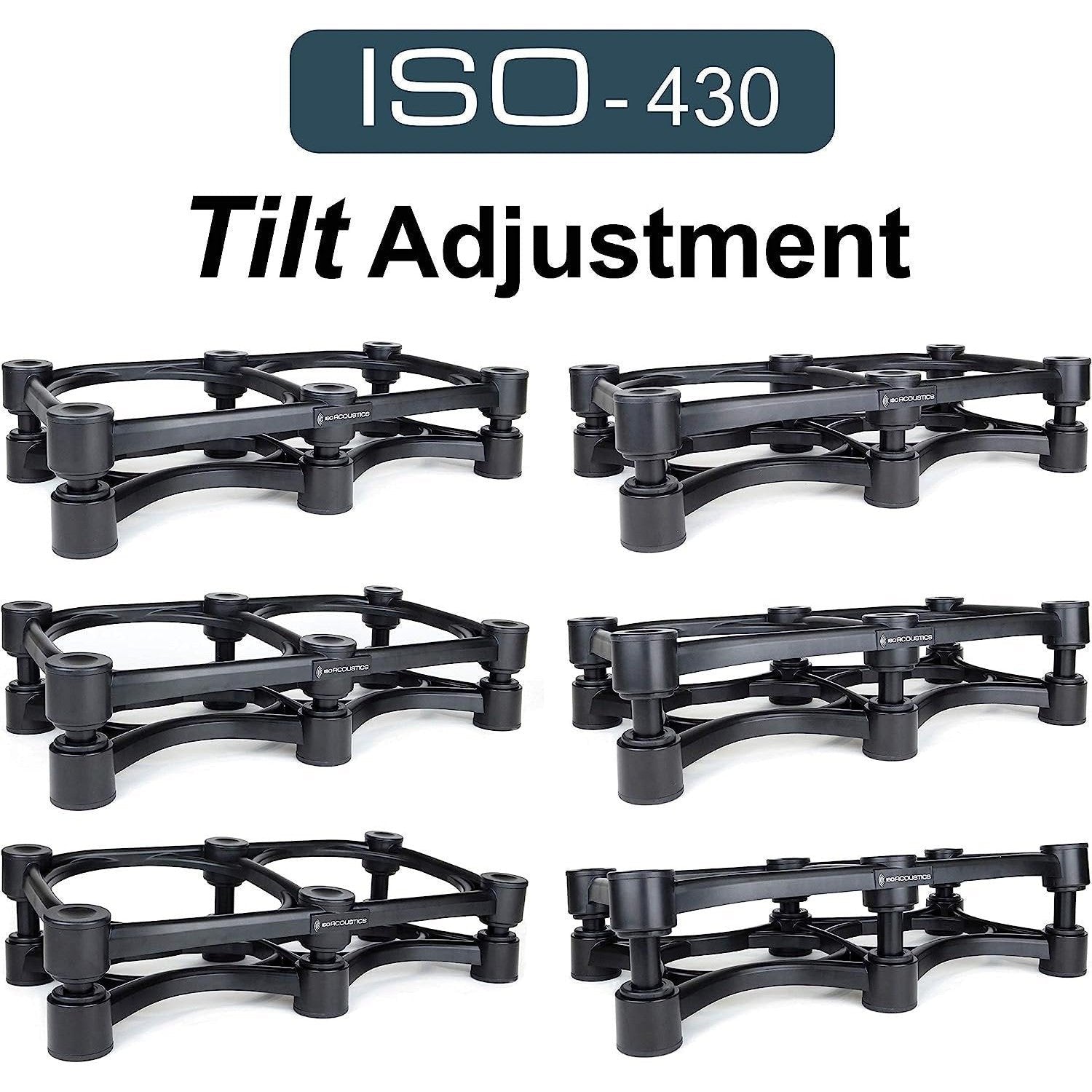

Step 2: Decide the level of tilt
Secondly, decide what level of tilt would be best suited for your setup.
If you want to tilt up, insert either two of the short or two of the long inserts into the front tubes.
If you want to tilt down, insert either two of the short or two of the long inserts into the back tubes. If no tilt is needed, the inserts will not be used.
Step 3: Press the tubes into the bottom frame isolators
Thirdly, firmly press the tubes into the isolators in the bottom frame until they are fully inserted.
Step 4: Install top frame
Finally, insert the poles into the isolators in the top frame. You might have to apply pressure to each of the four corners until the poles are fully inserted into the isolators.
Step 1
Step 2
Step 3
Step 4

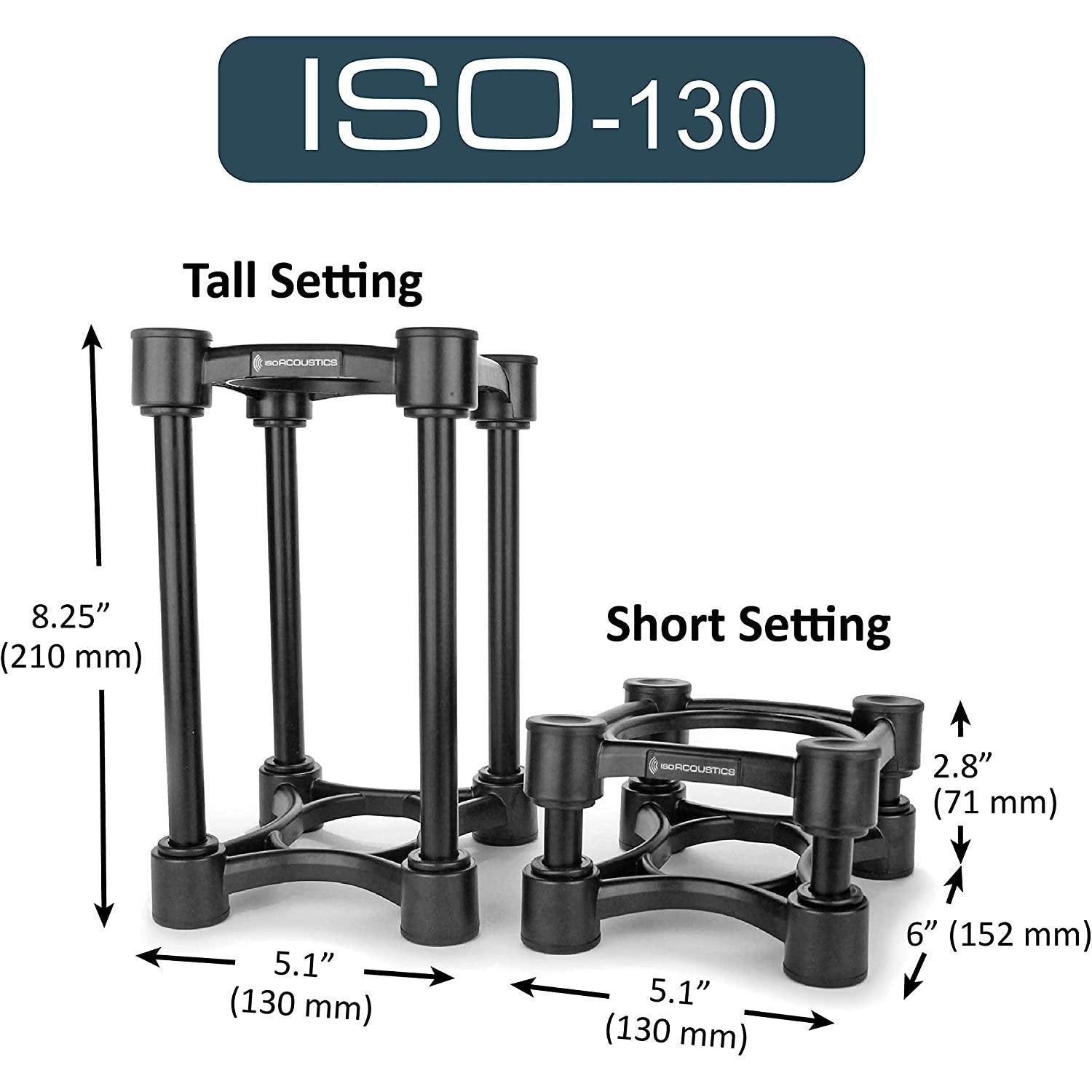

Dimensions Short Setting (WXDXH)
5.1”x6”x2.8” 130x152x71mm
6.1”x7.5”x3” 155x190x76mm

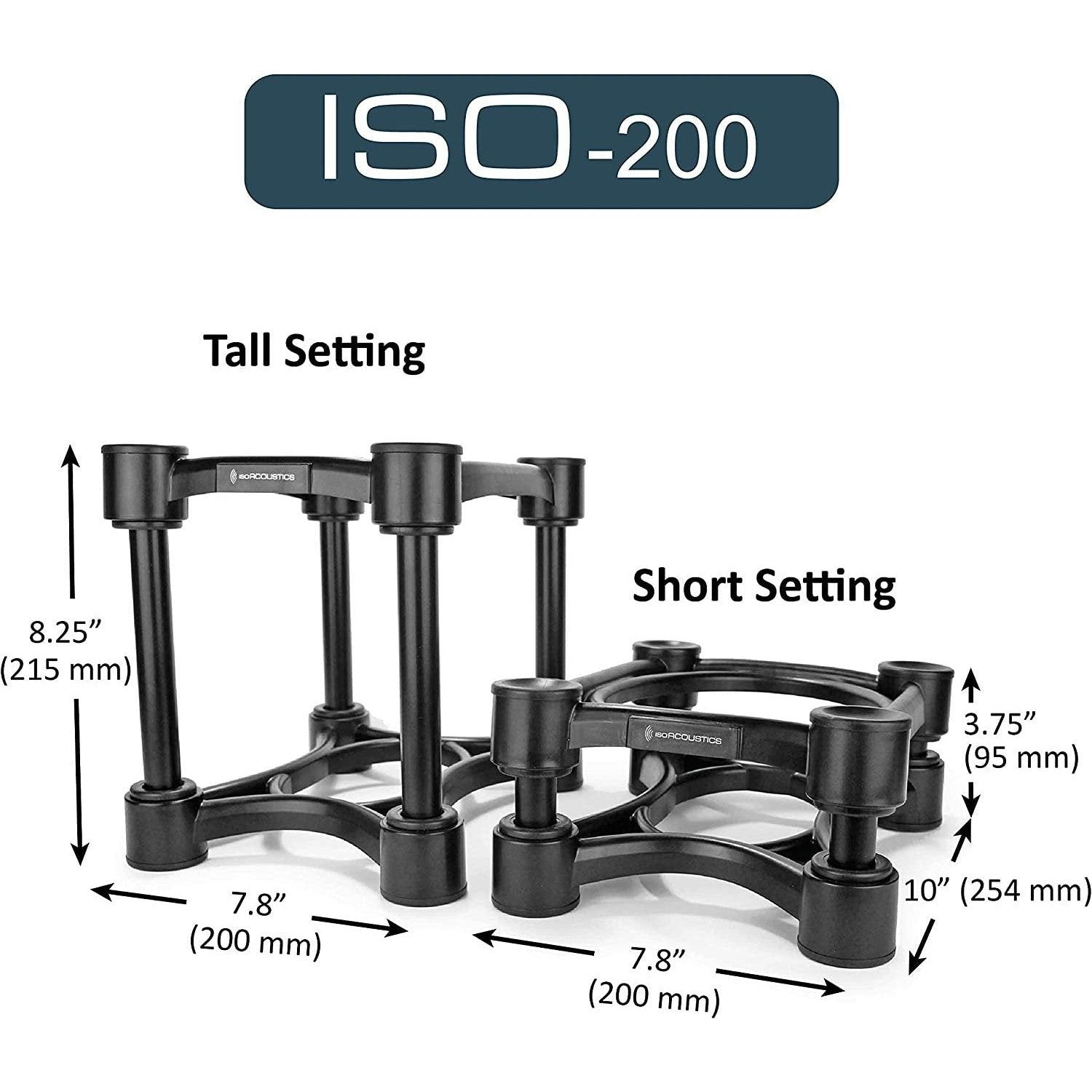

7.8”x10”x3.75” 200x254x 95mm
7.8”x10”x3.75” 200x254x95mm

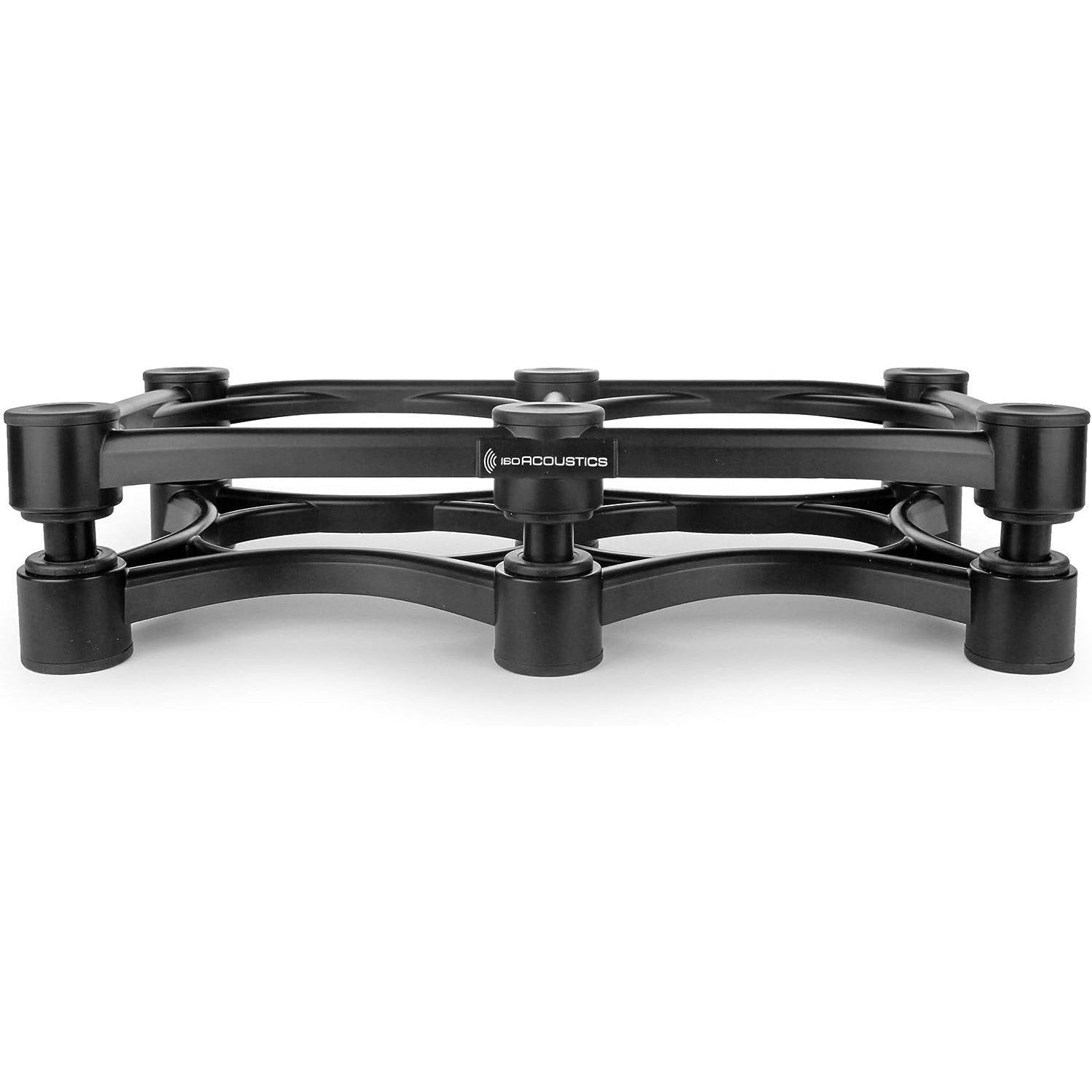

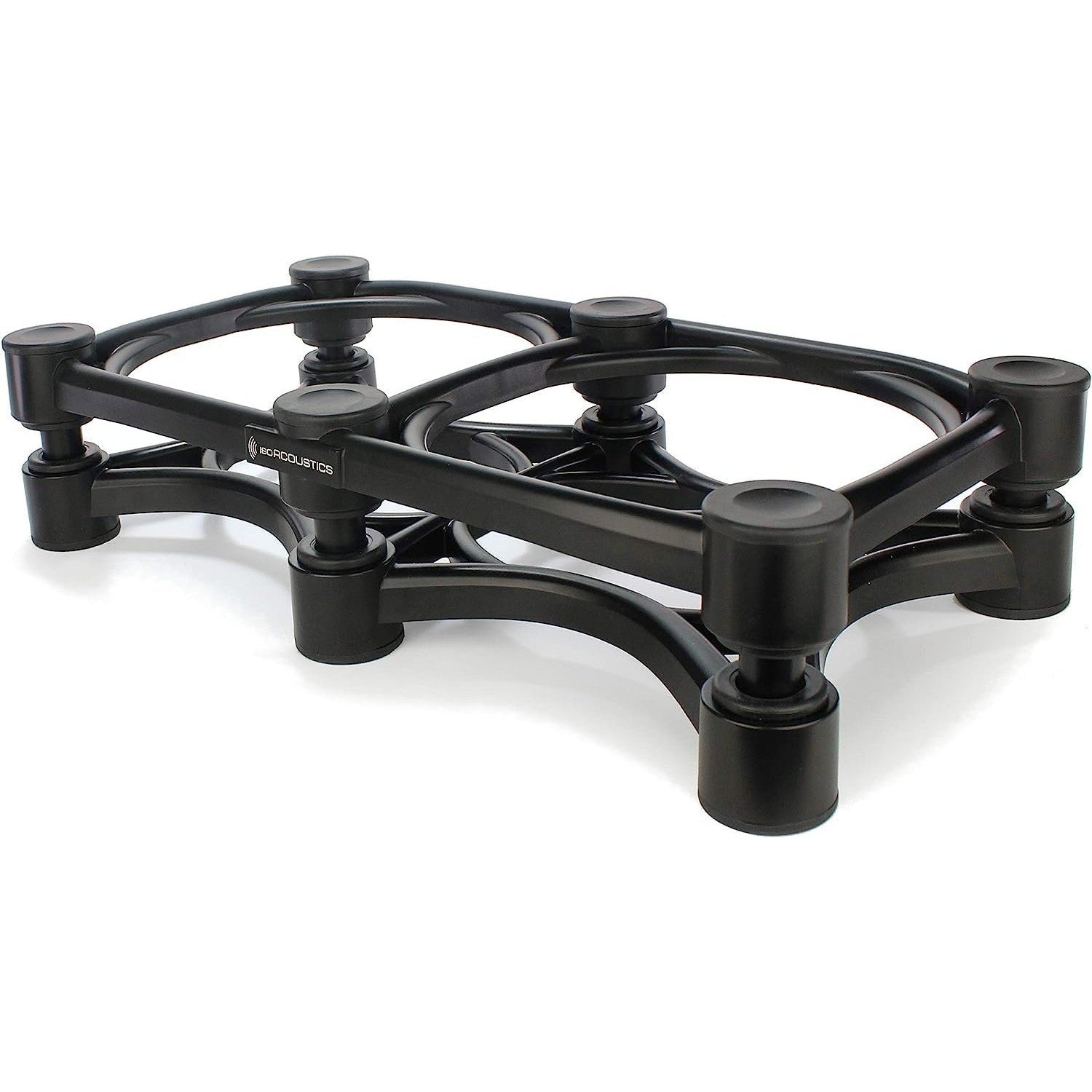

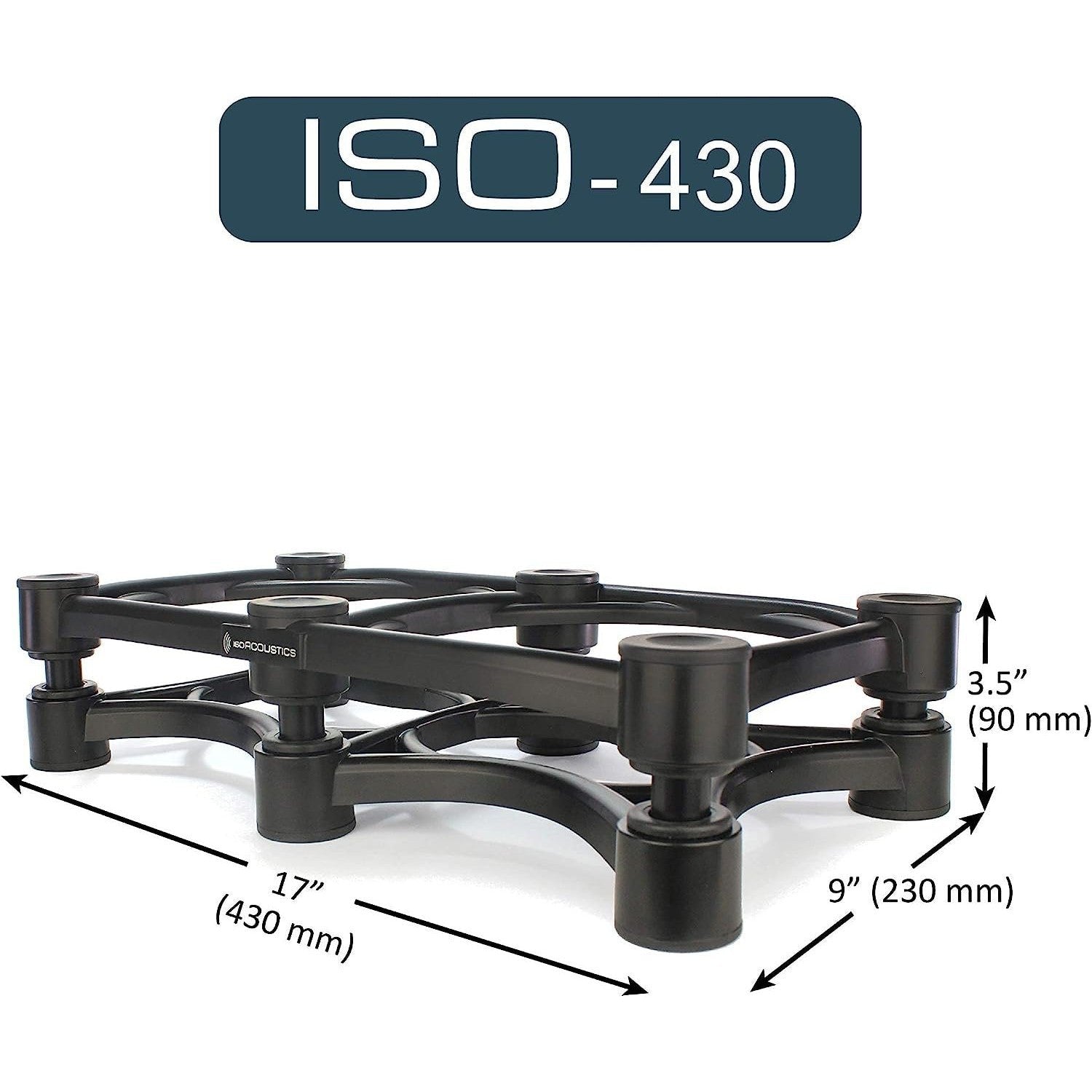

17”x9”x3.5” 430x230x90mm
Dimensions Tall Setting (WXDXH)
5.1”x6”x8.25” 130x152x210mm
6.1”x7.5”x8.25” 155x190x210mm
7.8”x10”x8.5” 200x255x215mm
x
x
Tilt
Up to 6.5 degrees
Up to 6.5 degrees
Up to 6.5 degrees
x
Up to 6.5 degrees
Weight Cap Short Setting
20 lbs (9KG)
40 lbs (18kg)
75 lbs (34kg)
75 lbs (34kg)
100 lbs (45kg)
Weight Cap Tall Setting
20 lbs (9KG)
35 lbs (16kg)
60 lbs (27kg)
x
x
Quantity
2 Stands (1 Pair)
2 Stands (1 Pair)
2 Stands (1 Pair)
1 Stand (Single)
1 Stand (Single)

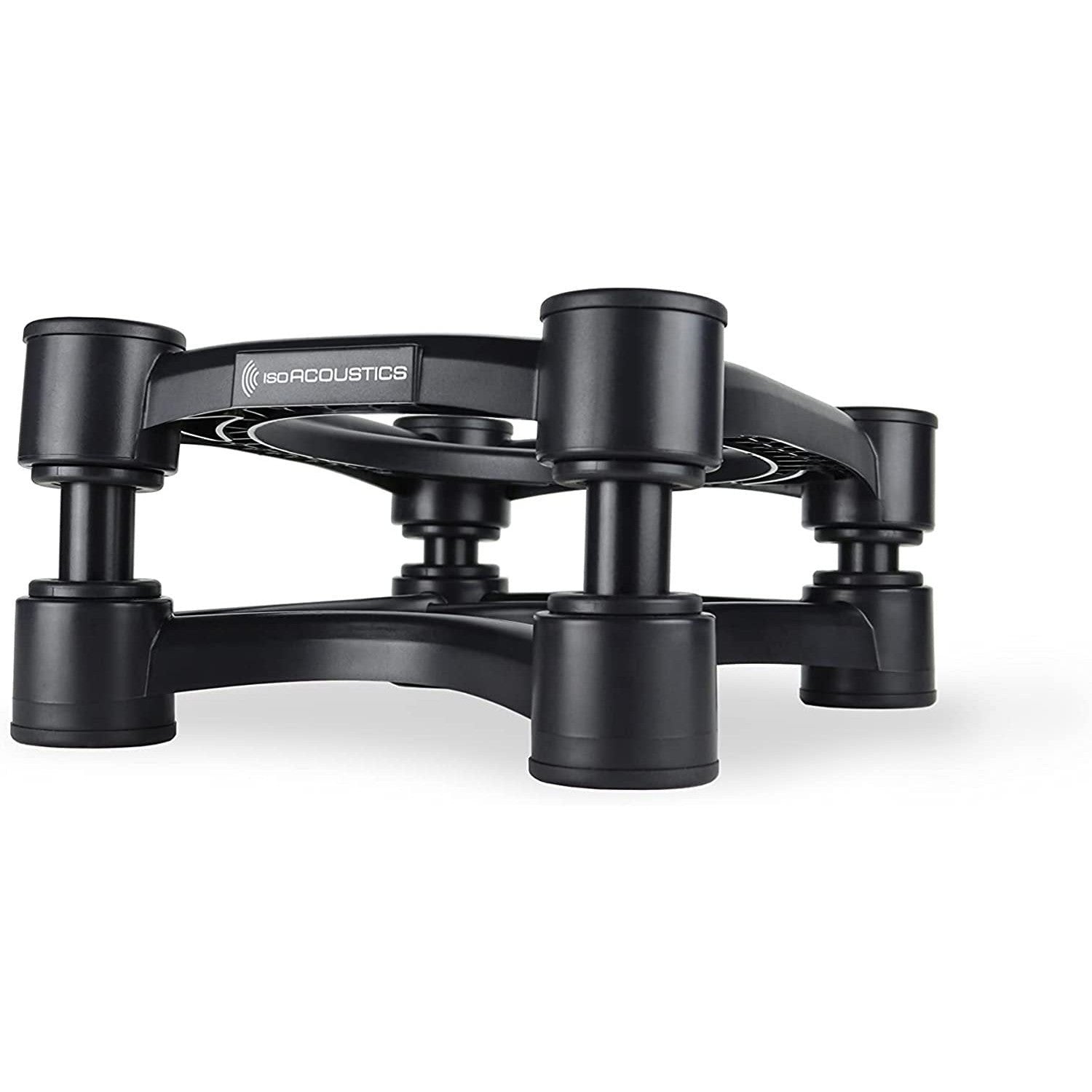

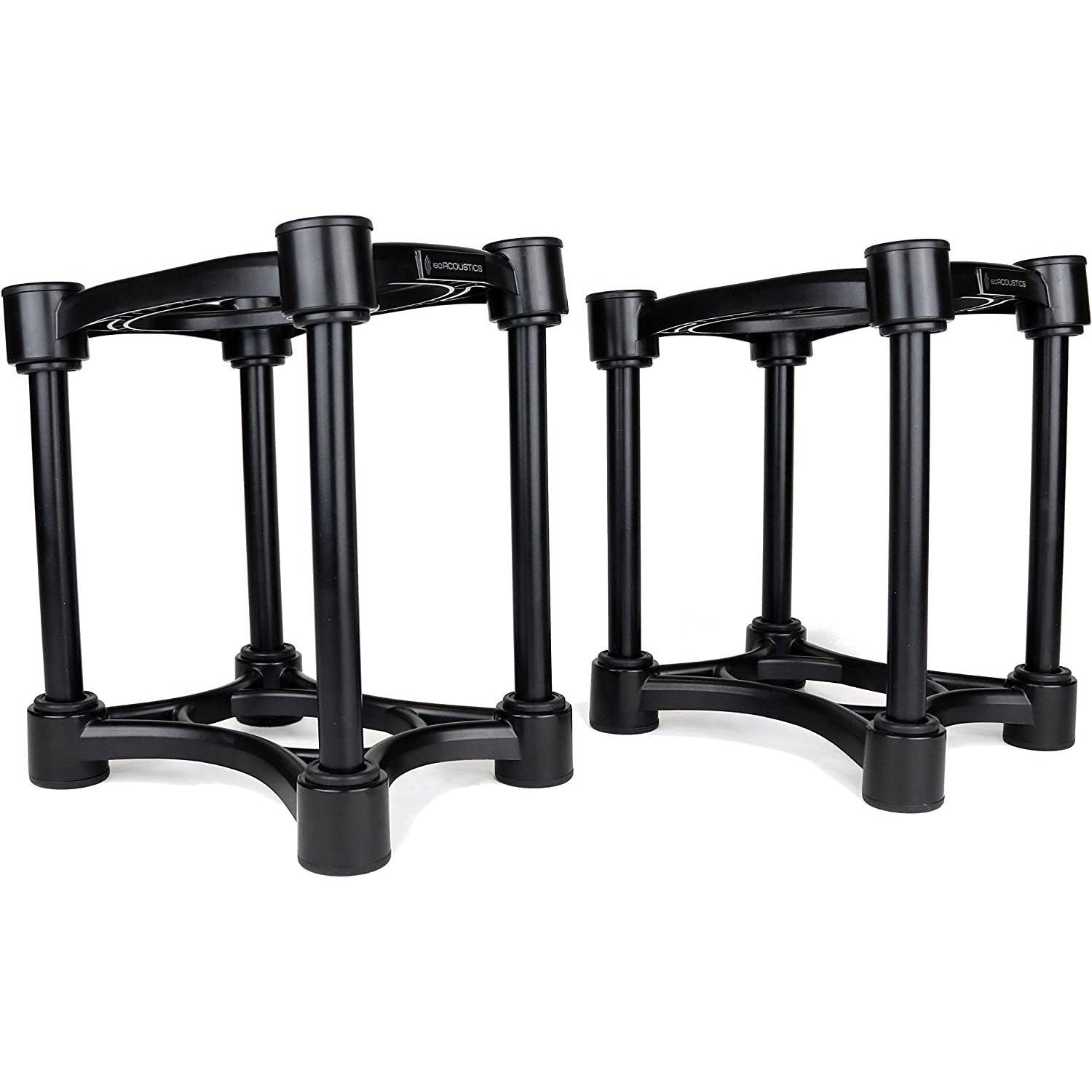

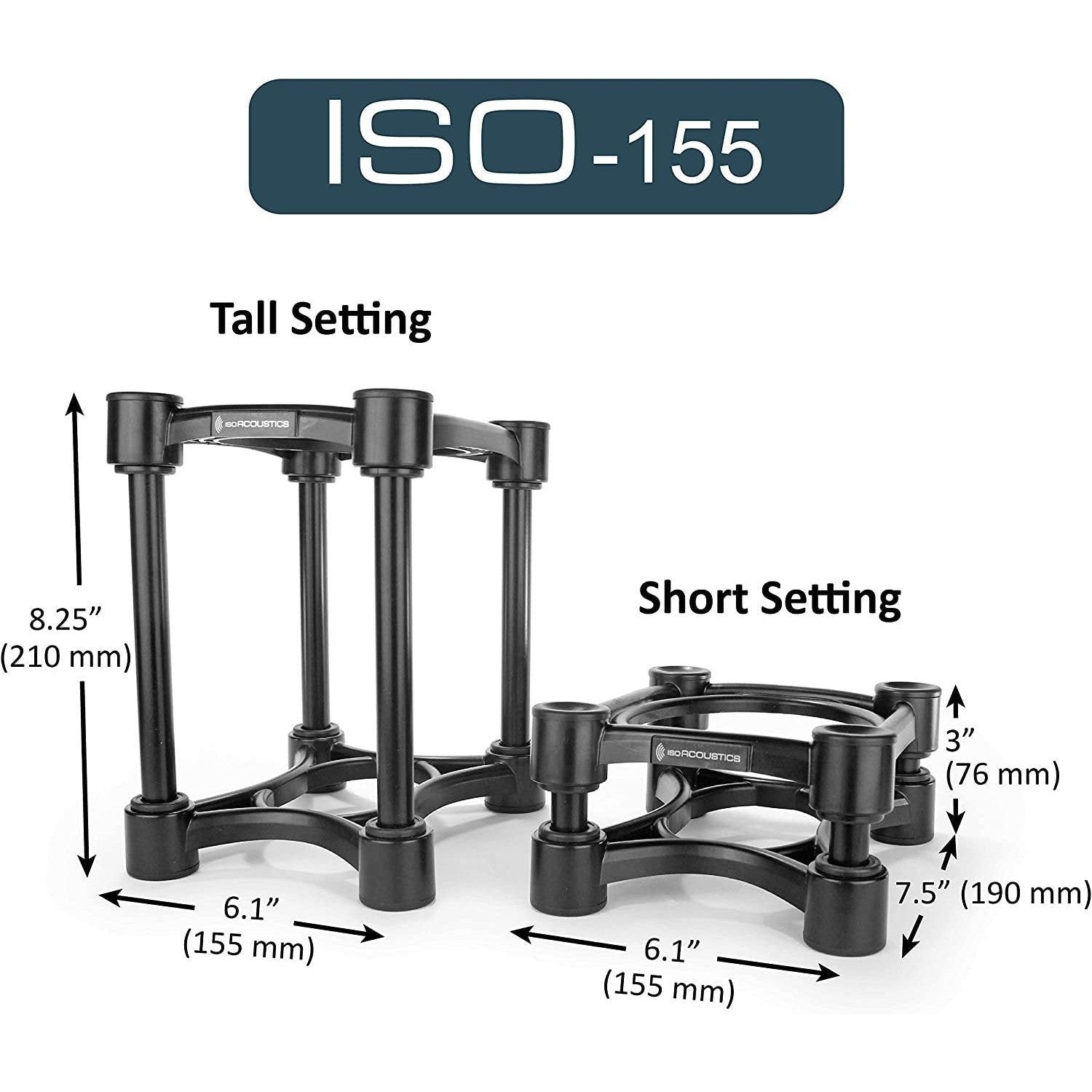

- 6.1” (155mm) Wide x 7.5” (190mm) Depth. 3” (76mm) Height in low setting. 8.25” (210mm) height in tall setting. 40lbs (18kg) weight capacity. Package includes 2 Stands.

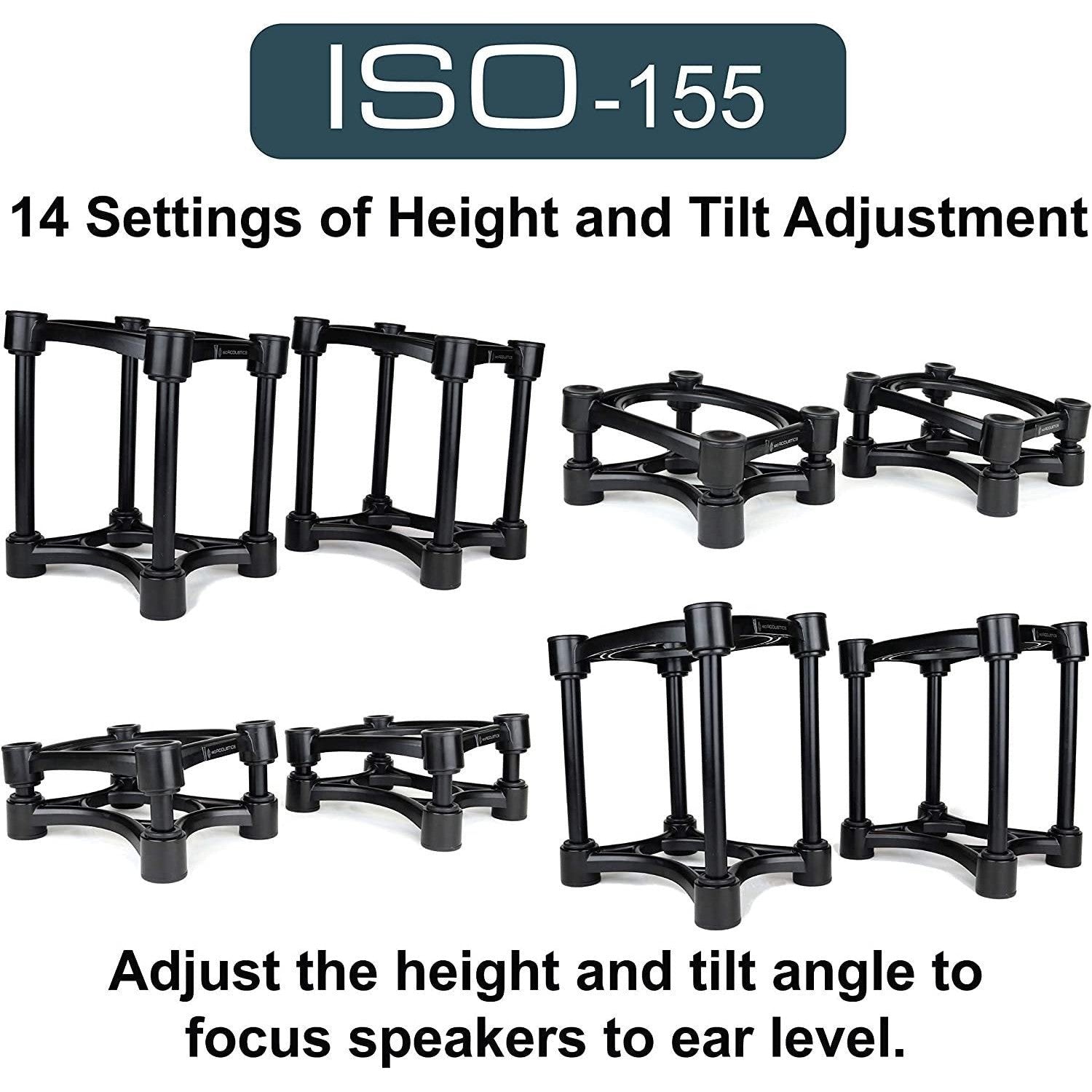

- HEIGHT & TILT ADJUSTMENT: Offering 14 variations of height and tilt, the ISO-155 will help you optimize the placement of your monitors and focus your tweeters to ear level.
- PATENTED ISOACOUSTICS ISOLATION: Tested at the National Research Council of Canada (NRC). The IsoAcoustics award winning design provides superior isolation performance.
- EXCITING THE SUPPORTING SURFACE: The isolators manage the energy of the speaker to reduce vibrations resonating through the supporting surface to eliminate dissonant sounds in the listening area.
- REDUCES INTERNAL REFLECTIONS: IsoAcoustics isolator reduces internal reflections to eliminate smear. The result is an improved stereo image of natural spatial sound.
