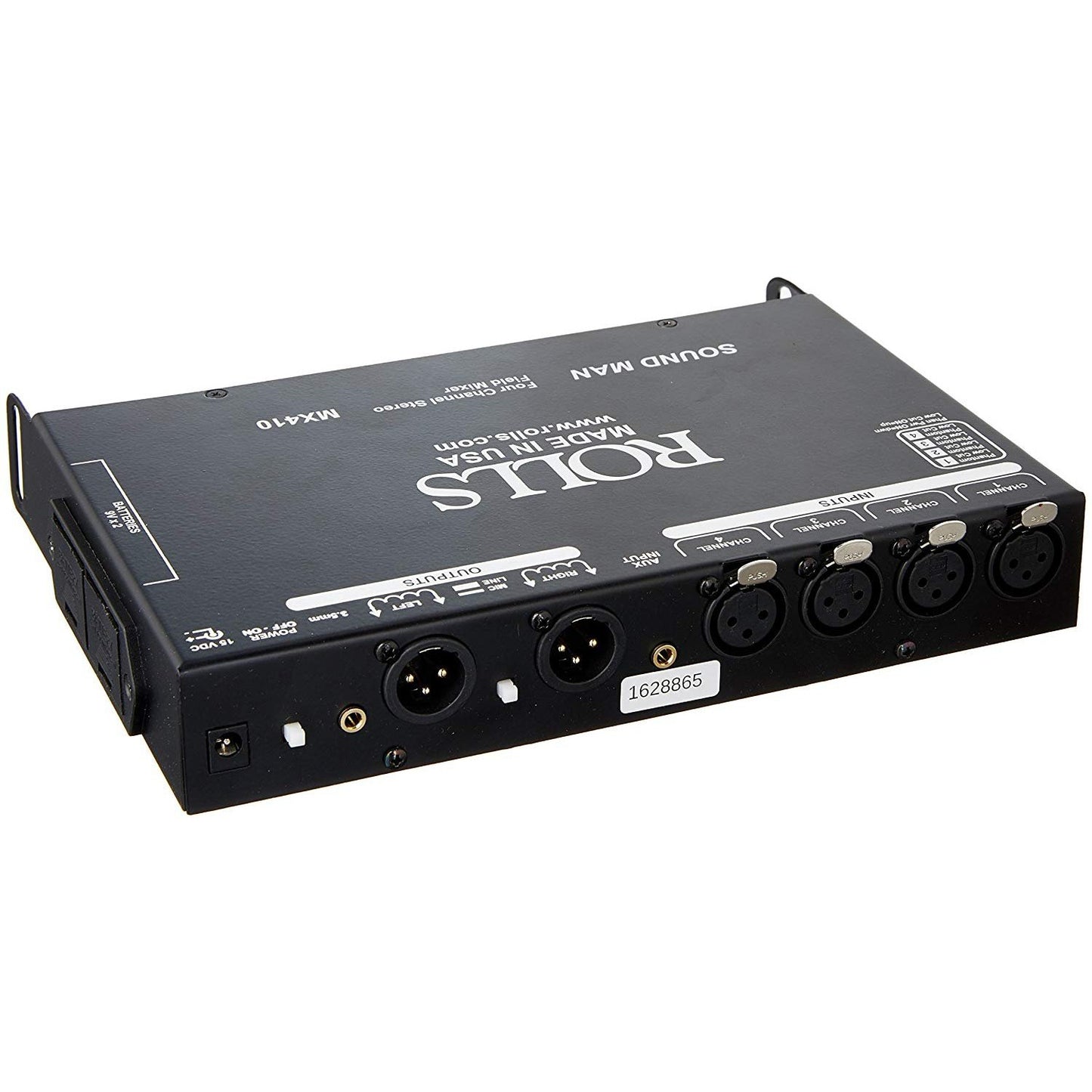

rolls Field Mixer 4 Ch with Led Meters (MX410)
rolls Field Mixer 4 Ch with Led Meters (MX410)

rolls Field Mixer 4 Ch with Led Meters (MX410)

Regular price
Sold out
Sale price
Shipping calculated at checkout.

The MX410 is a four channel, microphone mixer with balanced XLR inputs and outputs. The unit is ideal for the broadcast and video markets. It has the same features of other ENG / portable mixers without the extremely high price. Applications include: DV Field Production. Electronic News Gathering. Location Recording (Dialogue and Music). Digital Recording. Broadcast Remotes. Desktop Mixing for Video Post Production. Features: 3.5mm Headphone Output and Level control. Canvas case with shoulder strap included. Rolls PS27 external power supply included. Powered by two 9 volt batteries or the included power supplySpecifications Input Impedance - 600 Ohm bal. /10K Ohm Aux. Output Attn. Switch - 0/-30 dB Self Noise - -65 dB maximum, -90 dB typical Max Gain - +55 db S/N Ratio - 115 dB Frequency Response - 20 Hz - 20 kHz | +0, -3 dB Max Input - -20 dBV Current Draw - 30 mA with no Phantom Power or Signal. Phantom Power - +18 VDC Connectors - 4 - Female XLR, 2 - Male XLR, 3 - (3.5mm), 1 Center Negative power jack. Power - 12VDC / < 200 mA Size - 9 W x 6.75 D x 1.5 H Weight - 2.45 lbs
